Our pneumatic vent valves allow air to escape in one direction only and reliably prevent inflow. This protects internal components and meets the highest protection requirements, such as IP65. They ensure stable pressure equalisation in housings, pneumatic systems or sensitive assemblies.

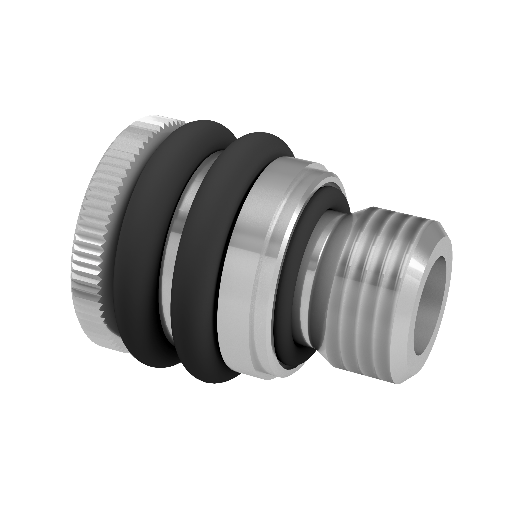

In the example shown, venting was achieved using a G1/4 vent valve equipped with several vent slots. Two O-rings provide reliable protection against the ingress of foreign media.
The number of holes and O-rings depends on the pressure, volume flow and permissible pressure loss at the valve. Lead-free aluminium was chosen as the material and then black anodisedto ensure corrosion protection and durability. The hardness of the O-rings hardness of the O-rings 70 Shore to effectively protect the holes while maintaining the intended pressure loss.
Customisable
- Flow rate: suitable for air volume flow, pressure and system requirements
- Material: plastic, metal or special materials, optionally corrosion-resistant or food-safe
- Design: flexibly adapted to the installation situation and application
Areas of application
Ideal for pneumatic and control systems, electronics and enclosure protection, mechanical engineering, automotive engineering and all applications that require safe pressure equalisation with maximum protection.
Your advantages
- Reliable venting in accordance with the volume flow and permissible pressure loss
- Protection class IP65
- Protection class IP65
- Flexible and customisable
- Advice, design and prototype production included
With our valves, we offer customized solutions that perfectly combine function, protection and efficiency. We would be happy to assist you too!
